AR5 Acoustic Recorder.

Built by Alato, the AR5 follows the same trusted design as the AR4, previously produced by the Department of Conservation (DOC).

Commercial Pricing

$ 775.00
(+ GST) NZD
Product Category
Hardware
Product Size
230mm x 70mm
Product weight
370 grams (with batteries)
Product Run time
120hrs - 180 hrs OR 28 Days
PRODUCT DETAILS

Product description

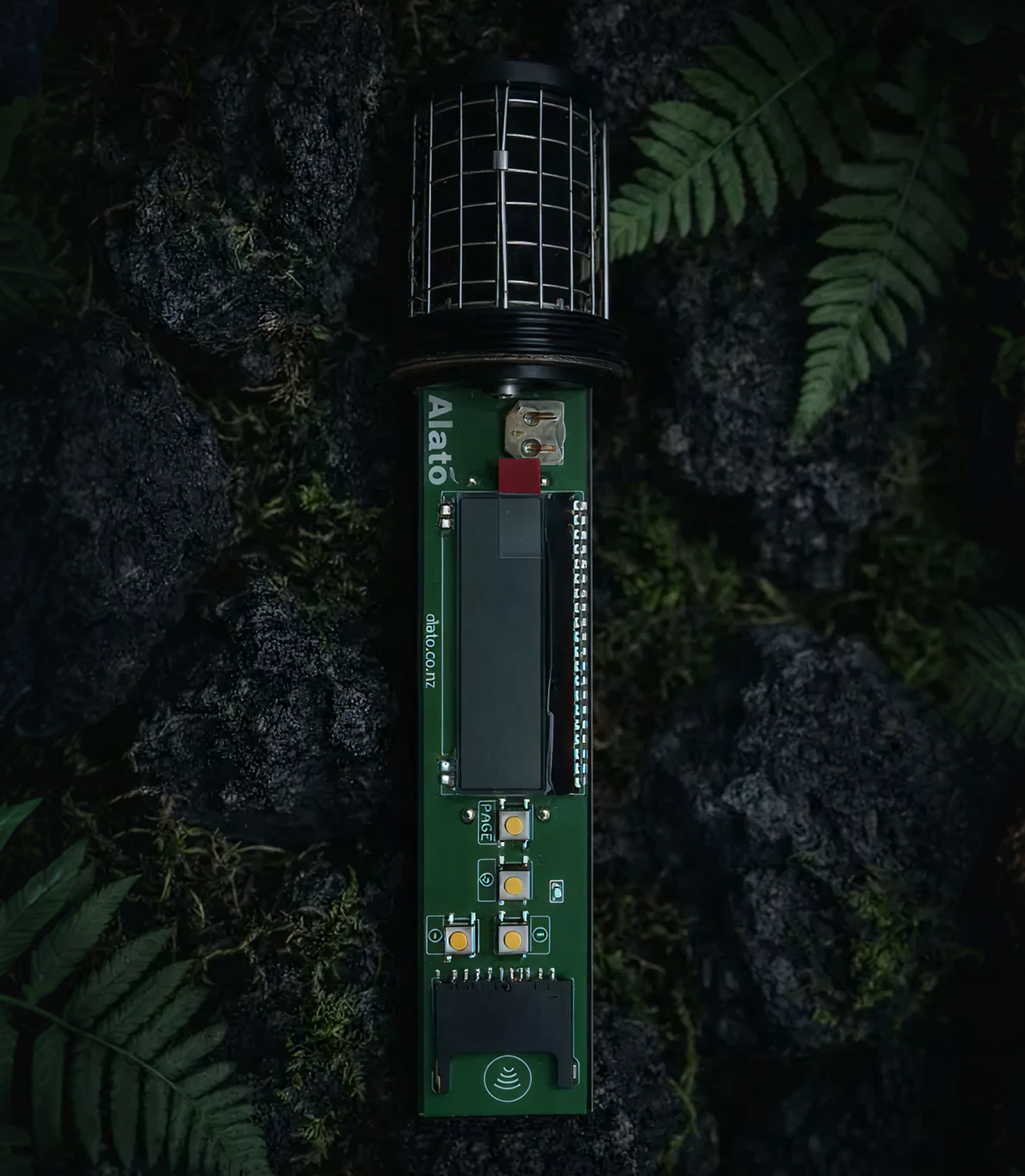

The Alato AR5 acoustic recorder is the successor to DOC’s AR4 acoustic recorder. The AR5 is the first acoustic recording device built by Alato, specially engineered to deliver high quality audio recordings and spectrograms of bat and bird calls for research and monitoring wildlife.

Designed as a light weight and versatile unit, the AR5 is weatherproof, small and easy to use. The AR5 has three standard recording protocols for monitoring different species. Acoustic high and low modes and Bat mode for producing compressed bitmap spectrogram records of bat calls.

Technical Specifications

RECORDING
Capture high and low-frequency calls or bat-triggered recordings, optimised for species-specific monitoring.
ENCLOSURE
Built to withstand New Zealand's varied climate with a durable, waterproof shell.
POWER OPTIONS
4 x AA NiMH or Alkaline (NiMH recommended)
FILE FORMATS
BMP output for ultrasonic recordings
OPPERATION
Programmable with inbuilt protocols, including two customisable daily recording sessions.
ACOUSTIC SAMPLING
High - 32KHz at 16bit resolution WAV files.
Low - 8KHz at 16bit resolution WAV files.
Bat - 0-88KHz compressed spectrogram bitmap.
MICROPHONE
Plug-in, user-replaceable microphone.
GPS INTEGRATED
Accurate location tagging and time-stamping of recordings.
STORAGE
Up to 2 TB SD card support (SanDisk Ultra recommended).
DIMENSIONS
Length: 230mm, Diameter: 70mm
Weight
370g with batteries
Warrenty
2 year - See warranty policy for details
